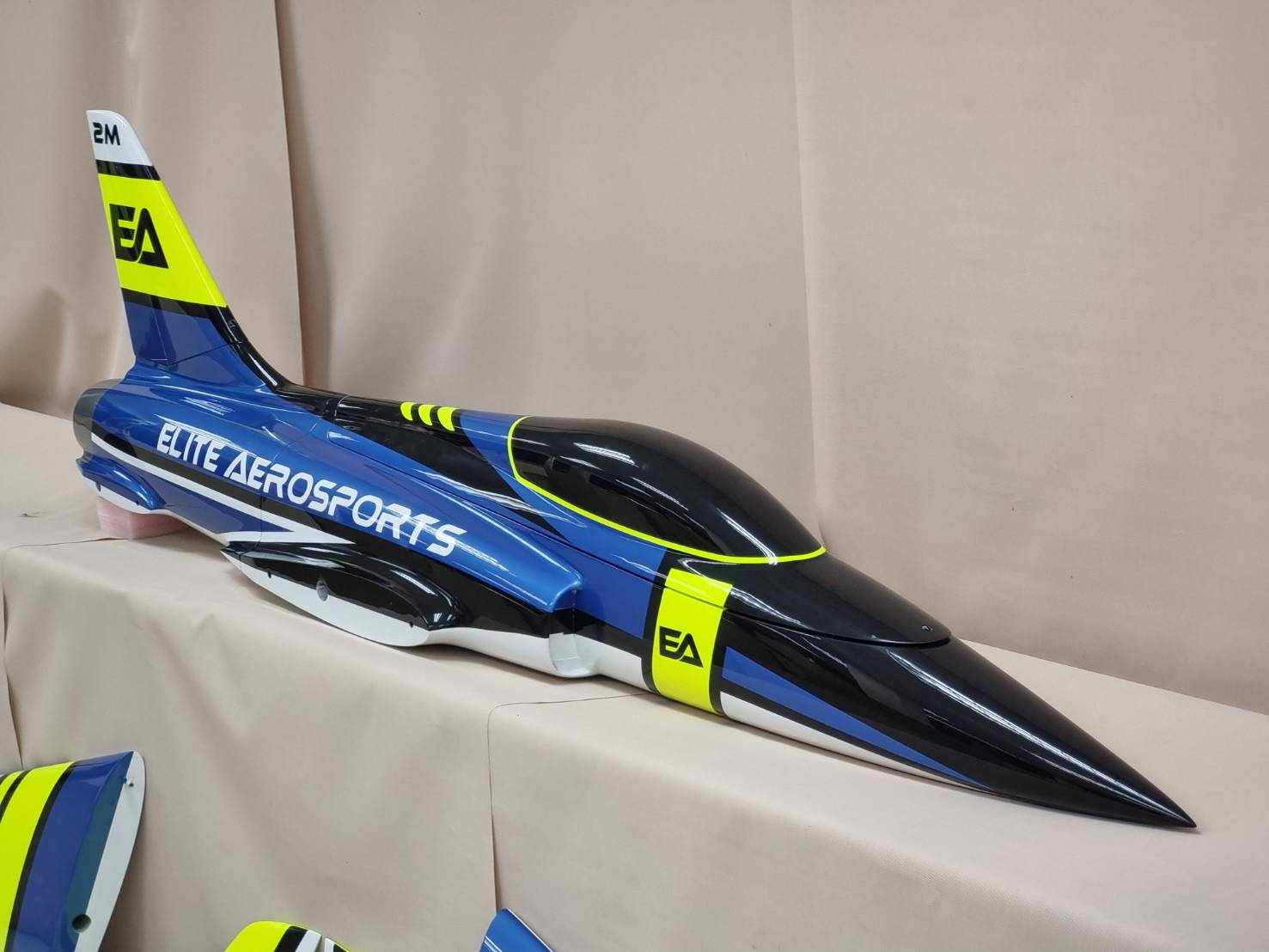

The smaller PICARO is here!  Fully tested and ready to go!

Our very Popular Picaro is now available in a 2M version.

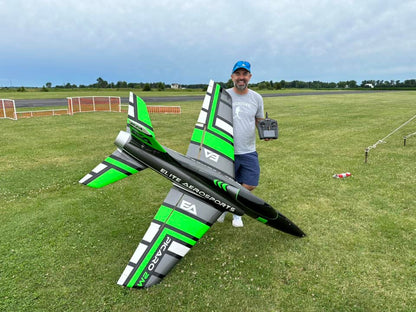

The very popular and attractive 2M Picaro has been given an abundance of wing area to fly like a much larger jet.  Its very forgiving and handles great at slow speeds, yet has a blistering high speed performance capability.

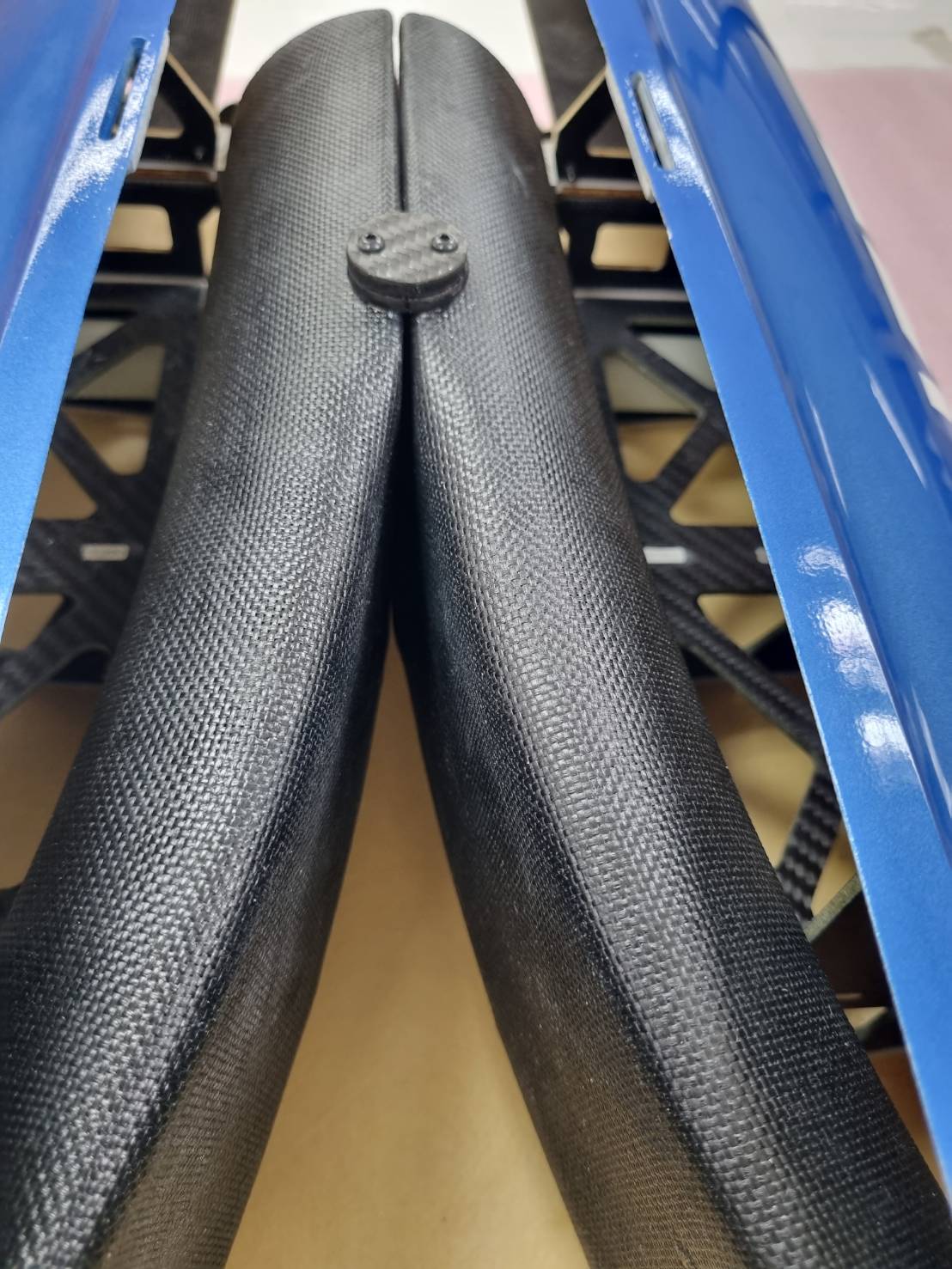

The 2M Picaro features inlets and conformal fuel tanks like its big brother.

2M PICARO CAN SHIP WORLDWIDE AIR FOR $495 !!!!  EMS is estimated about 7 days for delivery.

Production time is 4 to 6 weeks.  Plus air shipping time.

https://www.facebook.com/61550777751916/videos/491175786659715



Check out the specs!!



2M Picaro Specifications:

• Wingspan: 2.0m / 79 Inches
• Length: 2.13m / 84 Inches
• Weight: 25 lbs
• Power: 102-130N

ARF Kit Includes:

• Hardware
• Linkages
• 3.0L (3)Conformal Fuel Cells
• Stainless dual wall thrust pipe
• JP ER120 Electric landing gear or optional Electron landing gear ER 40 with RB45
• Standard wing, vertical and horizontal stabilizer covers
• Carbon Fiber wing and vertical and horizontal tubes
• 2 Piece fuselage

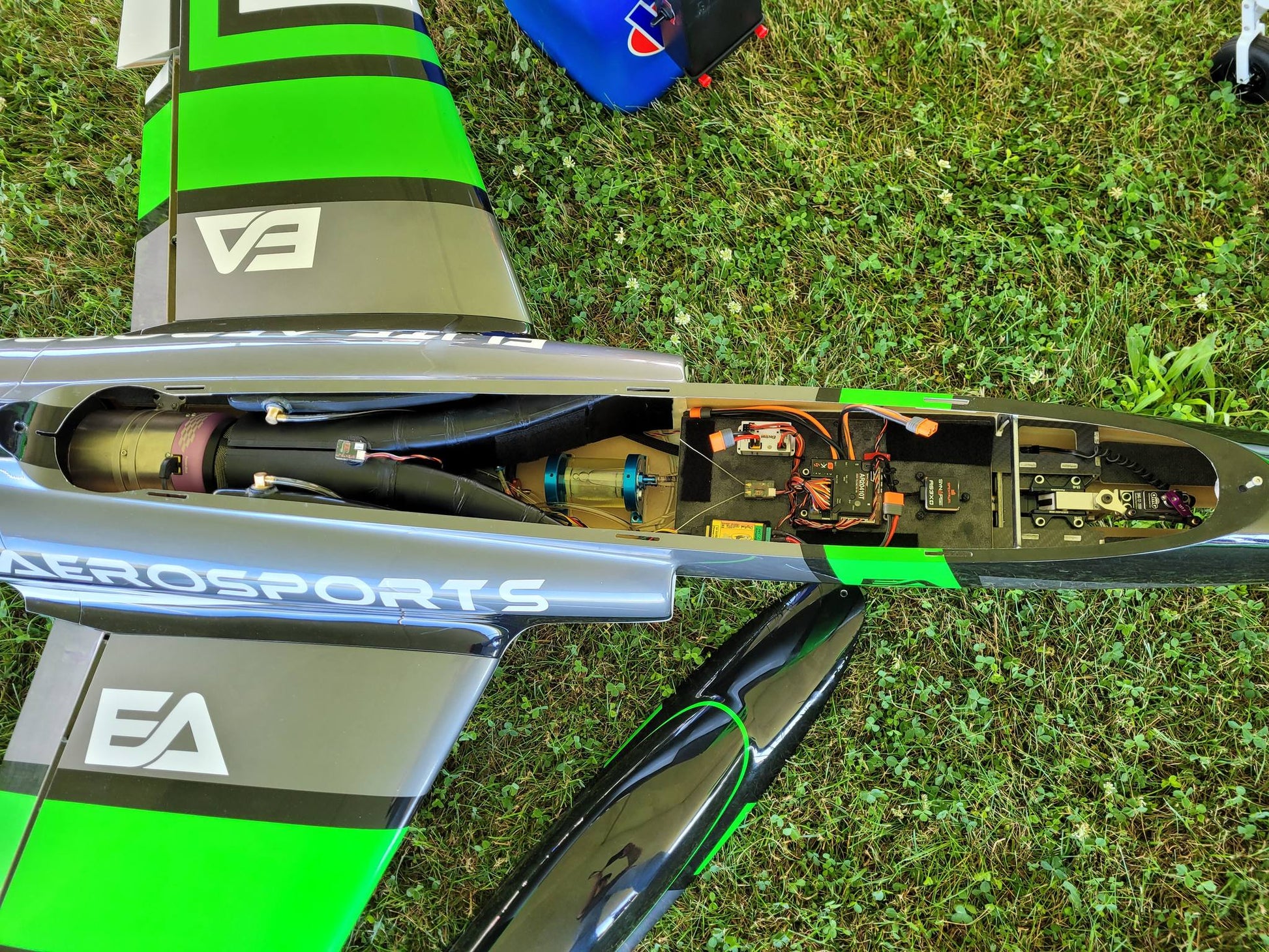

PNP Kit Includes:

• (8) Pre-installed HV servos 32 kg coreless
• All linkages installed and connected
• 3.0L Fuel cells installed and all fuel line ran
• UAT installed
• Wire harness

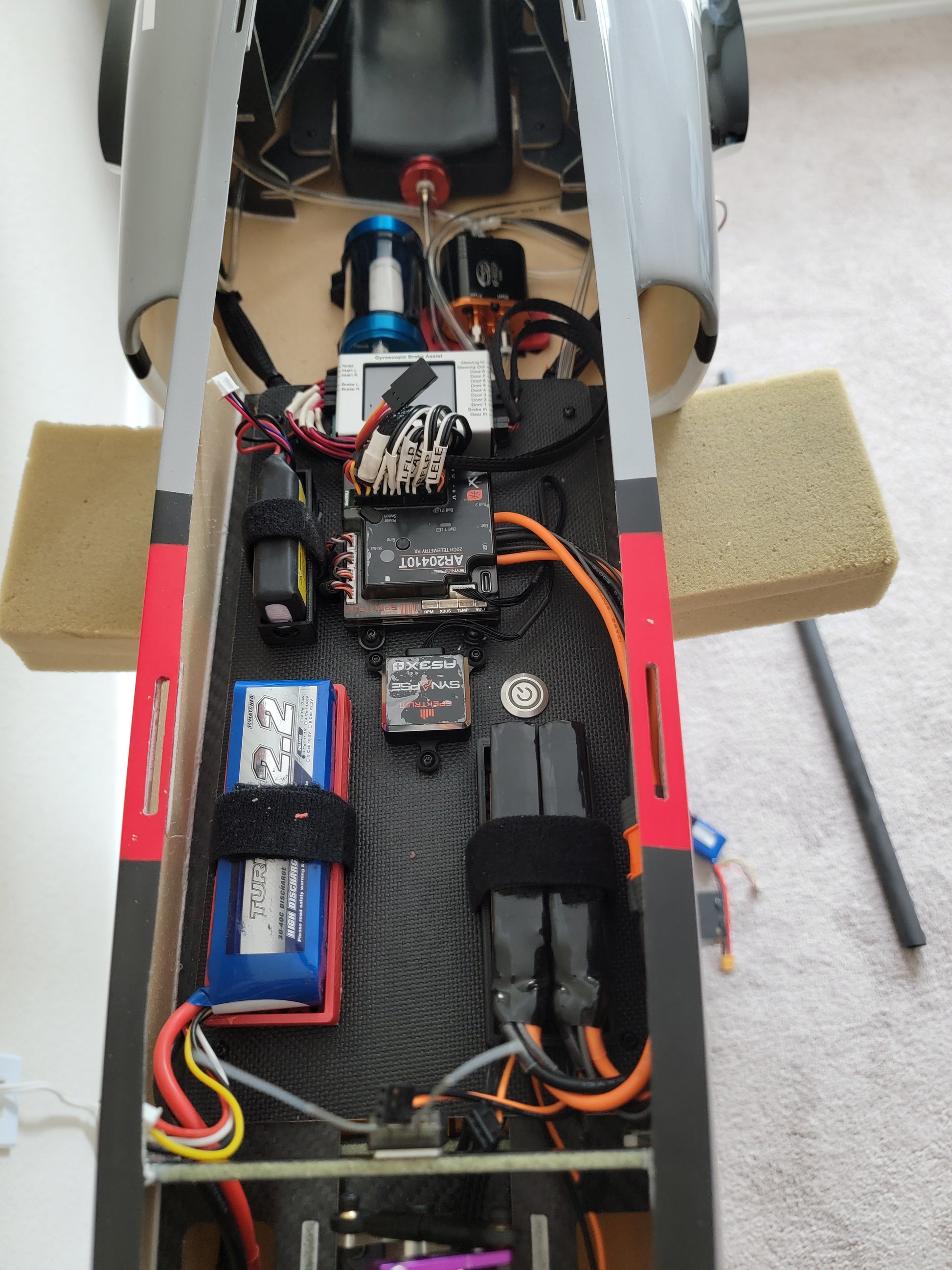

• Wiring completed with connectors and wire loom. Wiring is labeled and run to equipment tray
• Installed Stainless dual wall thrust pipe
• Electron ER 40 landing gear with RB45 controller or JP ER 120 Electric landing gear installed
• Just add receiver, gyro, turbine, and batteries.
• Hardware
• Linkages
• Stainless dual wall thrust pipe
• Standard wing, vertical and horizontal stabilizer covers
• Carbon Fiber wing and vertical and horizontal tubes
• Some modeling experience is required with PNP products.  Our products are built by skilled factory workers, who are not modelers, so please go over every nut and bolt before flights.
• turn key services are available.

Kit Features:

• Extensive Pre-fabrication
• Painted outside mold with clear coat finish
• Very light all composite sandwich layup
• Two-piece fuselage disassembles easily
• Removable vertical and horizontal stabilizers with one bolt
• Carbon fiber reinforcement throughout
• Carbon fiber wing and spar tubes
• Fuselage, wing, rudder and stab covers
• Diverse speed envelope, highly maneuverable while maintaining outstanding slow speed performance

Pricing:

• Introductory ARF price $4495(JP landing gear er120) $4995 (Electron landing gear er40 and RB 45 controller)
• Introductory PNP price $5595(JP landing gear er120) $6295 (Electron landing gear ER 40 and RB 45 controller)
• Custom paint schemes available, $500 and up.

Optional Accessories:

• Custom Wire Harness for ARF version $299
• Smoke tank and smoke hardware (not yet available)
• Digitech UAT $100 Nalgene UAT $40
• Revoc wing/stab/rudder bags in black, red or grey $450
• Light sets starting at $350
• Custom build service $1500 and up depending on options
• Discount HV servos packages available
• Kingtech Turbines
• EMS shipping door to door is $495
• DHL Shipping is $1070
• EA 36 KG servos $149
• Custom Paint scheme $500 and up

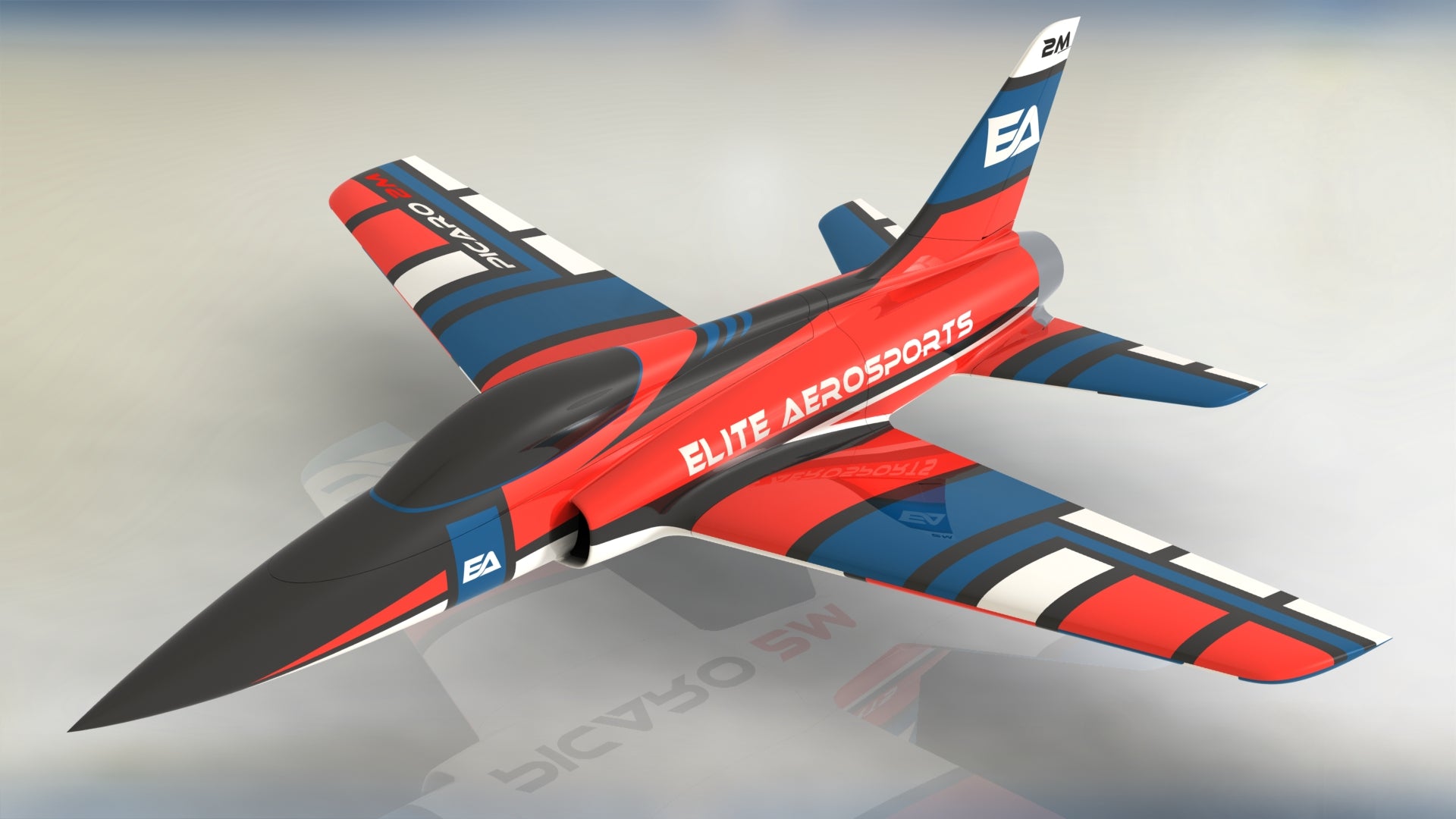

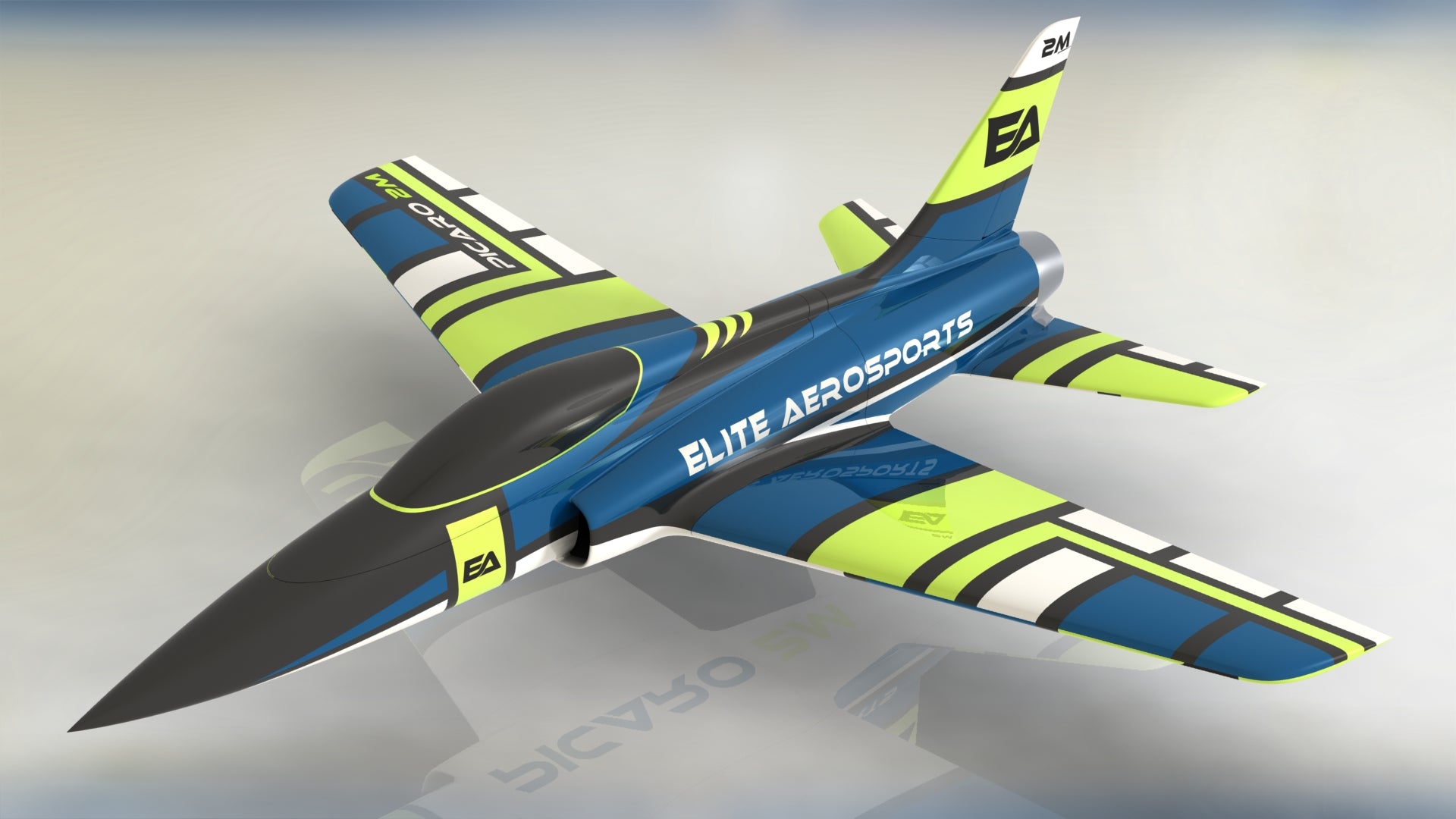

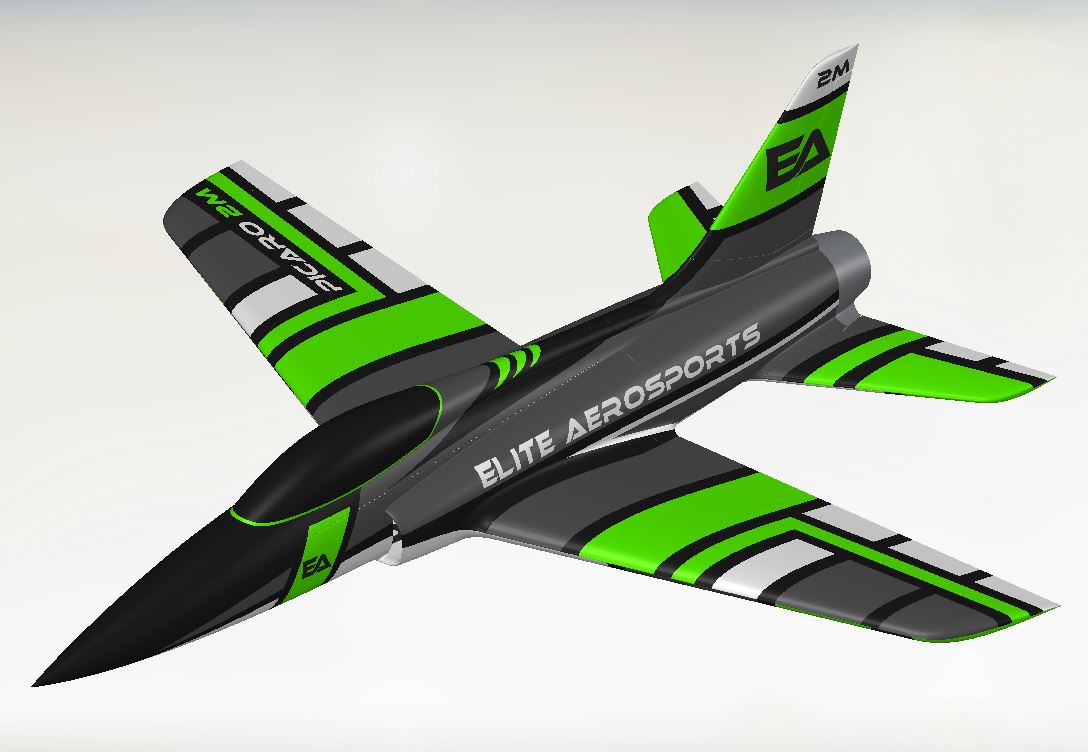

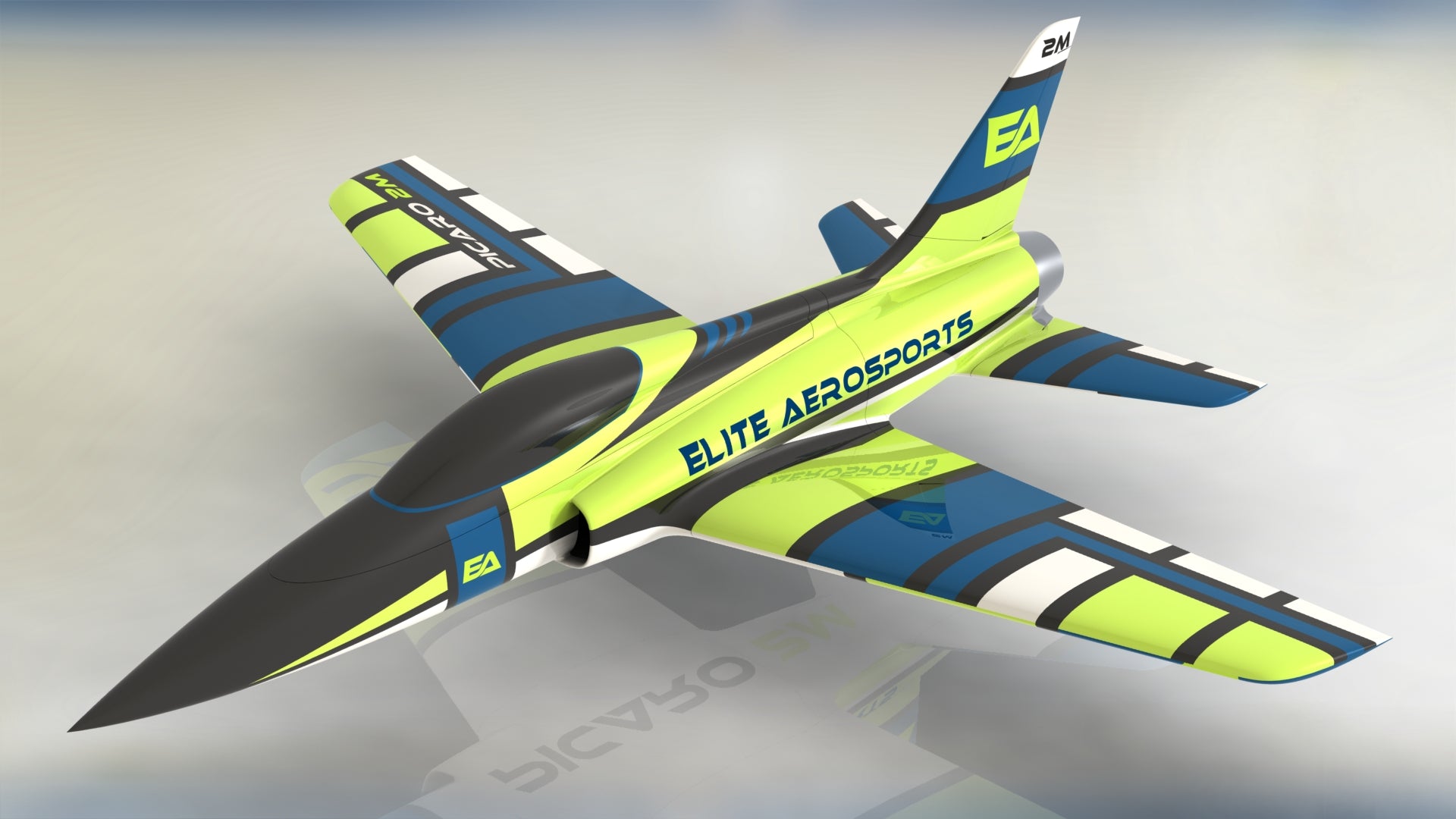

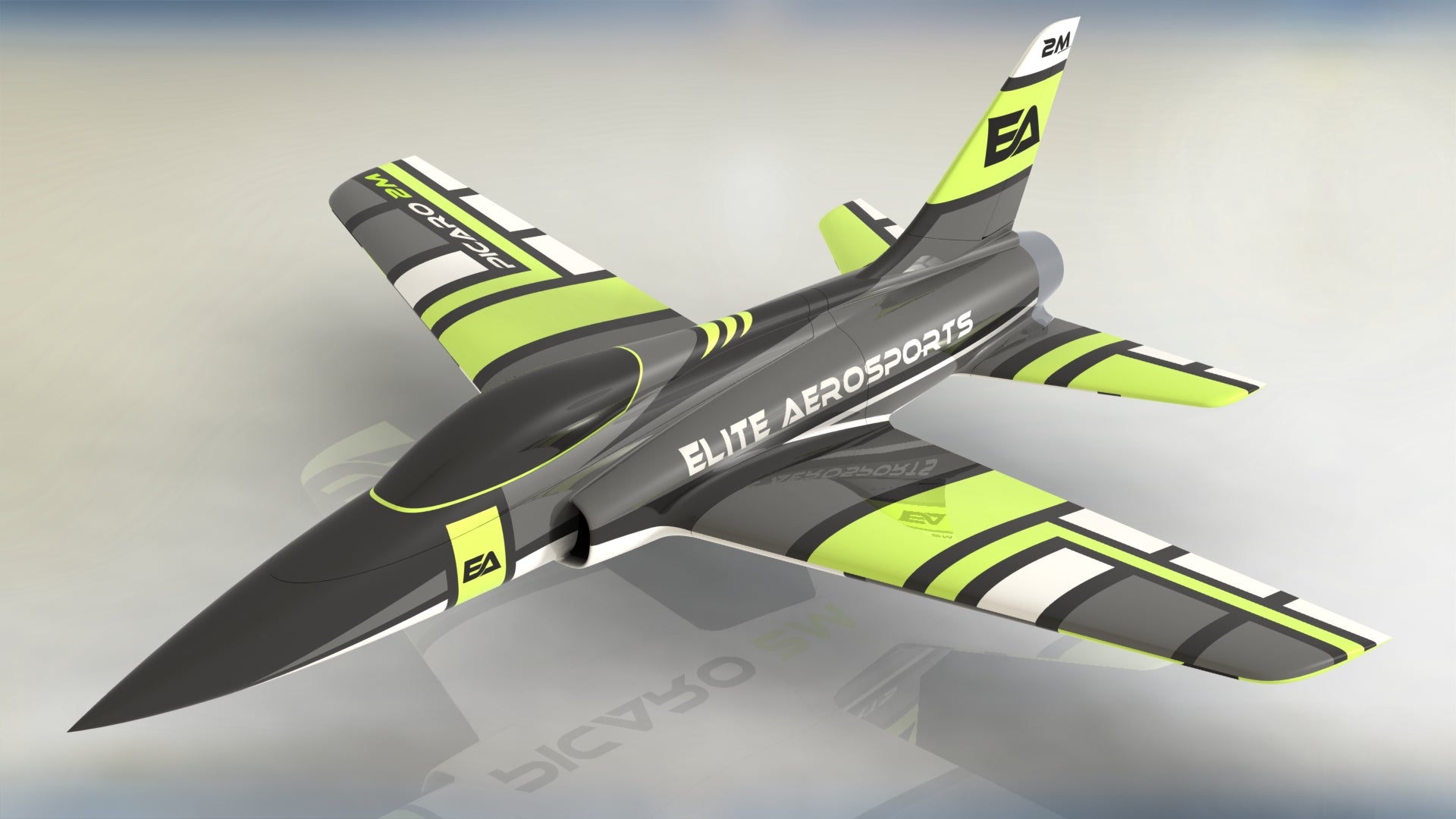

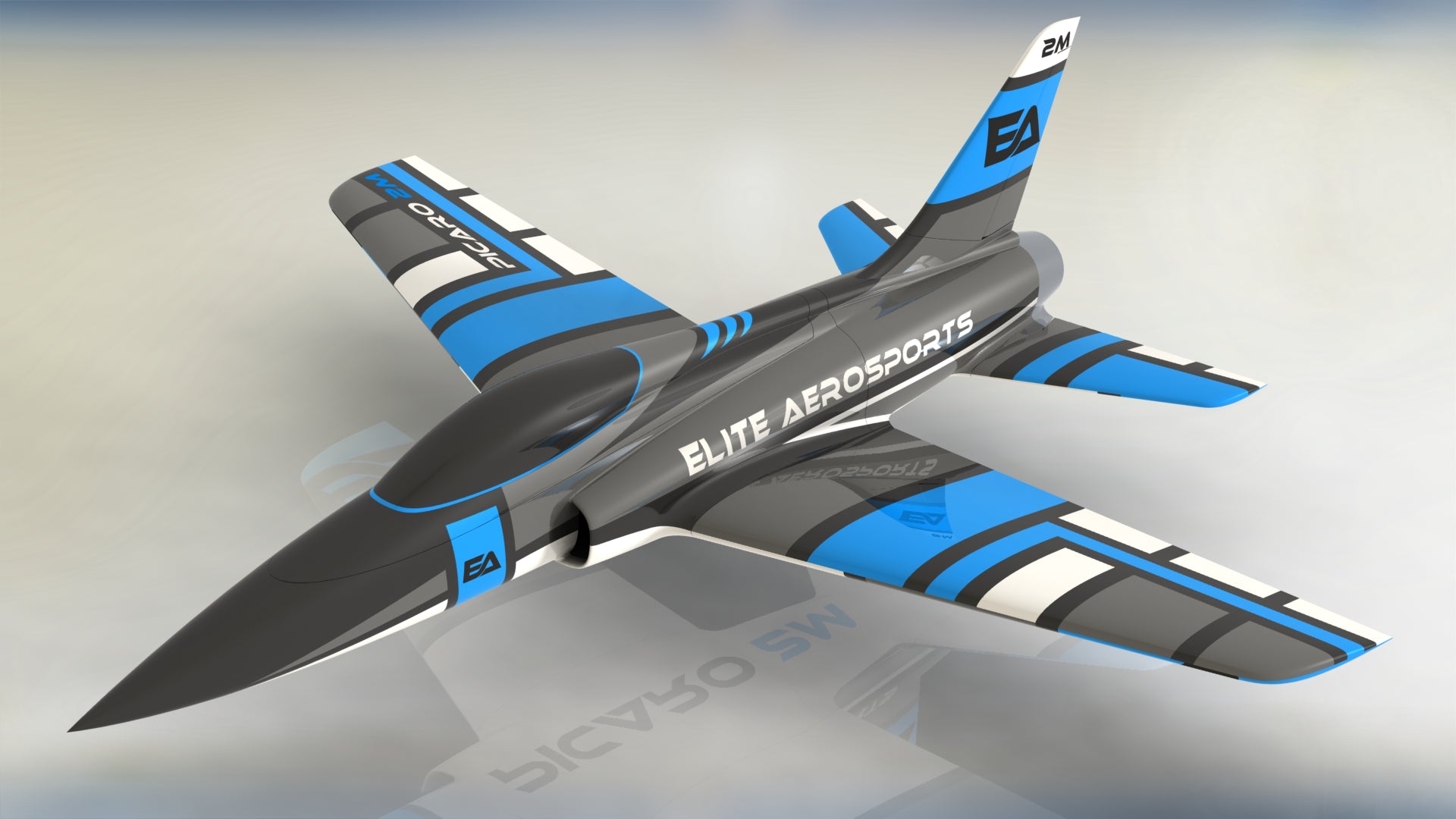

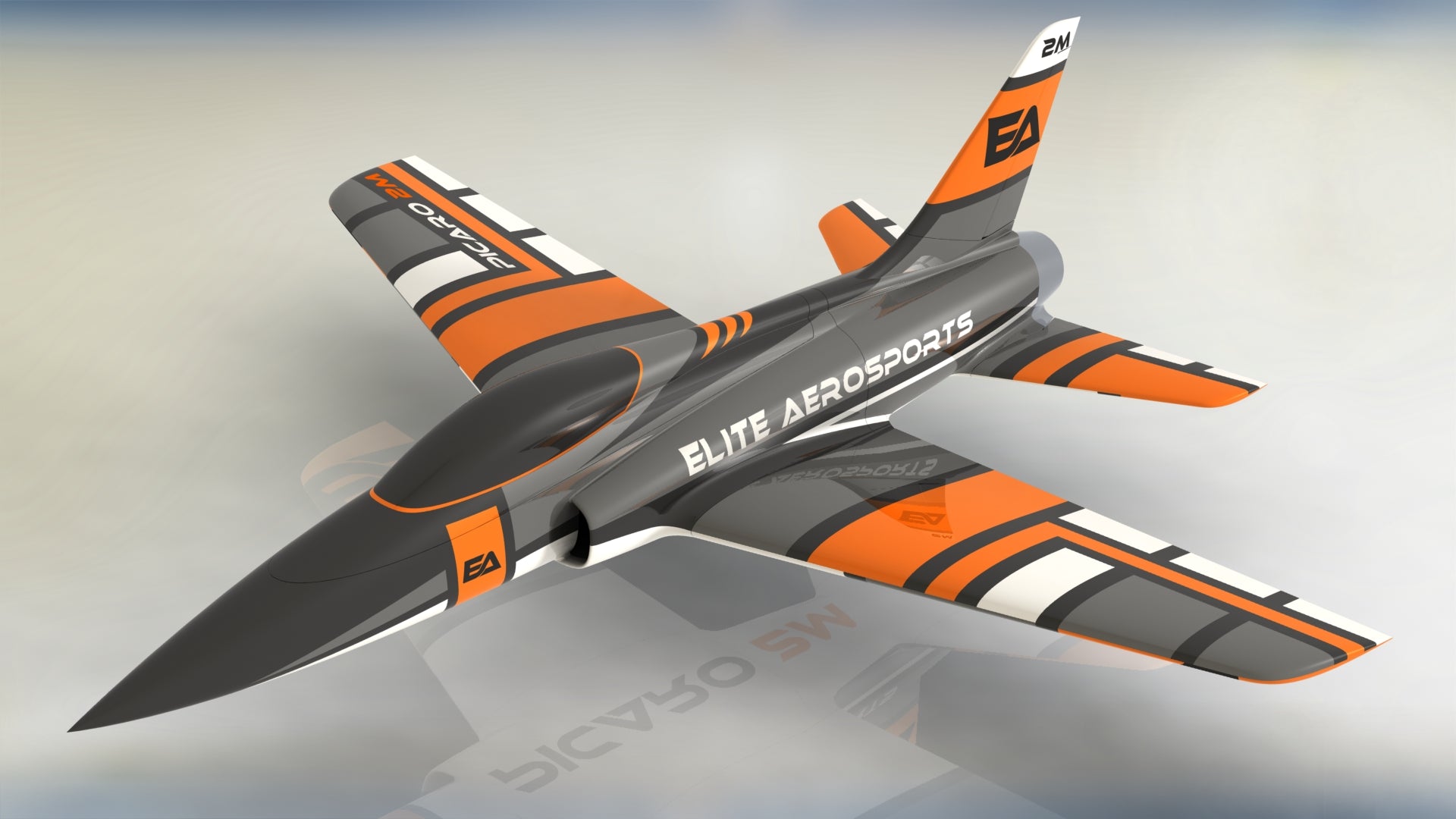

PICARO schemes here:

 email us for the schemes please







 8 full size servos needed for ARF.

2M linkages:

Aileron: 85mm.    no grommets.  1.5 inch arm used inner hole

Flap: 70-75mm adjustable.   no grommets.  1 inch arm and used inner hole and cut end of arm off

Elevator: 100mm.   no grommets.  1.5 inch arm used inner hole

Rudder: 100mm.   used grommets.  1.5 inch arm and used inner hole and cut end of arm off

Steering: 48mm.  no grommets.  1 inch arm



 throws:

Aileron: High 25MM, MID 20MM, 15MM Low from tip.  Expo 25%

Elevator: 17MM from tip, .  Expo 25%

Flaps: Takeoff: 20-25MM.  Full Flap: 85 to 95MM measured from aileron.  Slow flap system down to 4 seconds.  Mix in 3mm down with full flap.

Rudder 50-55MM.  Expo 15

CG:  Back of wing tube

Cortex Main Gain: 37 to 40 with 130 newtons

Aileron Gain: 6

Aileron Stick Priority: 15

Aileron Lock in: 7

Elevator Gain: 12

Elevator Stick Priority: 15

Elevator Lock in: 7

Rudder Gain: 16

Rudder Stick Priority: 15

Rudder Lock in: 7
