EA BDX

If item is not in stock please email us at info@eliteaerosports.com and lets get you ordered in your favorite scheme today!!



Inspiration for the BDX design came from the iconic Bede Aircraft BD5 by Jim Bede.  Jim Bede produced many aircraft designs from the 60's and 70's but maybe his most recognizable model was the BD5.  We envisioned what a modern BD5 would look like and brought it to life.  The BDX has far surpassed any of our expectations.  It has exceptional flying characteristics and has been described as like flying on "cheat mode".  Its a point and go model that feels like flying on a simulator.  The BDX is very versatile flying model that can fly very slow or exceed speeds of 200mph in an instant.  The BDX is an extremely stable model that makes landings effortless.  Check out the specs!!



Attention!  Servos pocket are standard size for 20 x 40 servos.  Some new servos are oversized.

25kg servos and up are adequate. Pnp models come equipped with 36kg servos.



BDX Specifications:

• Wingspan: 2.65m / 104 Inches
• Length: 2.8m / 110 Inches
• Weight: 40-42 Lbs
• Power: 180N-210N

ARF Kit Includes:

• Hardware
• Linkages
• High-Flow Fuel Fittings
• 6.0L Fuel Cell
• Stainless dual wall thrust pipe
• JP ER200 Electric landing gear or optional Electron landing gear with GS 200
• Standard wing, vertical and horizontal stabilizer covers
• Carbon Fiber wing and vertical and horizontal tubes

PNP Kit Includes:

• (8) Pre-installed HV servos with an incredible 500 oz in (36kg) of torque.
• All linkages installed and connected
• 6.0L Fuel cell installed with high-flow fittings and all fuel line ran
• UAT installed
• Wiring completed with connectors and wire loom. Wiring is labeled and run to equipment tray
• Installed Stainless dual wall thrust pipe
• Electron ER 50 landing gear with GS-200 controller or JP ER 200 Electric landing gear installed
• Just add receiver, gyro, turbine and you’re ready to FLY!
• Hardware
• Linkages
• High-Flow Fuel Fittings
• 6.0L Fuel Cell
• Stainless dual wall thrust pipe
• JP ER200 Electric landing gear or optional Electron landing gear with GS 200
• Standard wing, vertical and horizontal stabilizer covers
• Standard wing, vertical and horizontal stabilizer covers
• Carbon Fiber wing and vertical and horizontal tubes
• Some modeling experience is required with PNP products.  Our products are built by skilled factory workers, who are not modelers, so please go over every nut and bolt before flights.
• Turn key services are available.

Kit Features:

• Extensive Pre-fabrication
• Painted outside mold with clear coat finish
• Very light all composite sandwich layup
• Center hinged rudder for precise centering and maximum travel
• Two-piece fuselage disassembles easily
• Removable vertical and horizontal stabilizers with one bolt
• Carbon fiber reinforcement throughout
• Carbon fiber wing and spar tubes
• Fuselage, wing, rudder and stab covers
• Diverse speed envelope, highly maneuverable while maintaining outstanding slow speed performance

Pricing:

• Introductory ARF price $6795(JP landing gear) $6995 (Electron landing gear and GS 200 controller)
• Introductory PNP price $8595(JP landing gear) $8795 (Electron landing gear and GS 200 controller)
• Custom paint schemes available, add $500

Optional Accessories:

• Custom pipe upgrade $425
• Wire Harness $350
• Smoke tank and smoke hardware $179
• Large size UAT $130
• Revoc wing/stab/rudder bags in black, red $450
• Light sets starting at $399
• Custom build service $1500 and up depending on options
• EA 36 KG BL HV servos $150
• Kingtech Turbines
• EA 55 KG servos $199

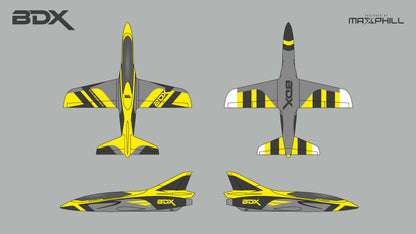

Check out additional BDX schemes here:  email us for the schemes



BDX build photos:

 https://www.dropbox.com/sh/w36s63k585q4tpg/AADpCWZksjRQn-Znypsn9QpCa?dl=0

https://www.dropbox.com/sh/w36s63k585q4tpg/AADpCWZksjRQn-Znypsn9QpCa?dl=0



BDX specs:

https://www.dropbox.com/s/deijl62k4qg4hva/BDX%20specifications.docx?dl=0



https://www.dropbox.com/s/deijl62k4qg4hva/BDX%20specifications.docx?dl=0



CG:

Back of wing tube

Build toward the front, use batteries in nose for balance.  Forward UAT, and equipment



Throws:

Aileron: 15-25mm/from tip.   low/high

Flaps:  full 90mm from aileron.  Mix 3-4mm down ele with full flap. Take off flaps 25mm from aileron

Elevator: 10.0-15.0mm from tip low/high

Rudder:  75mm plus from base



Expo:

Aileron 25%

Elevator 25%

Rudder 15%

Cortex settings:

Aileron Gain: 9

Aileron Stick Priority: 15

Aileron Lock In: 9

Elevator Gain:13

Elevator Stick Priority: 15

Elevator Lock in: 9

Rudder Gain: 15

Rudder Stick Priority: 15

Rudder Lock In: 9

Main Gain: 55
