UAS BDX

UAS BDX

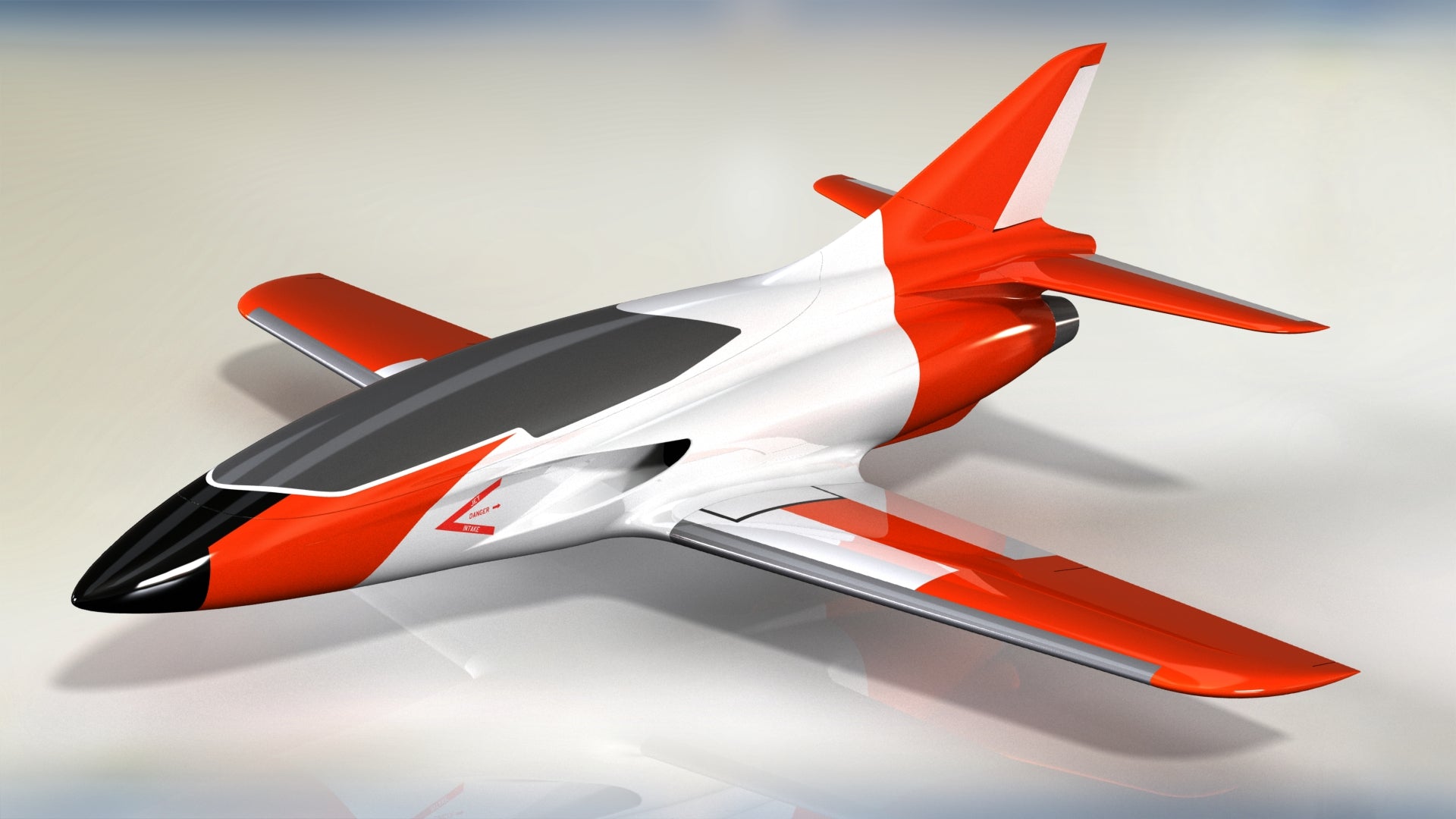

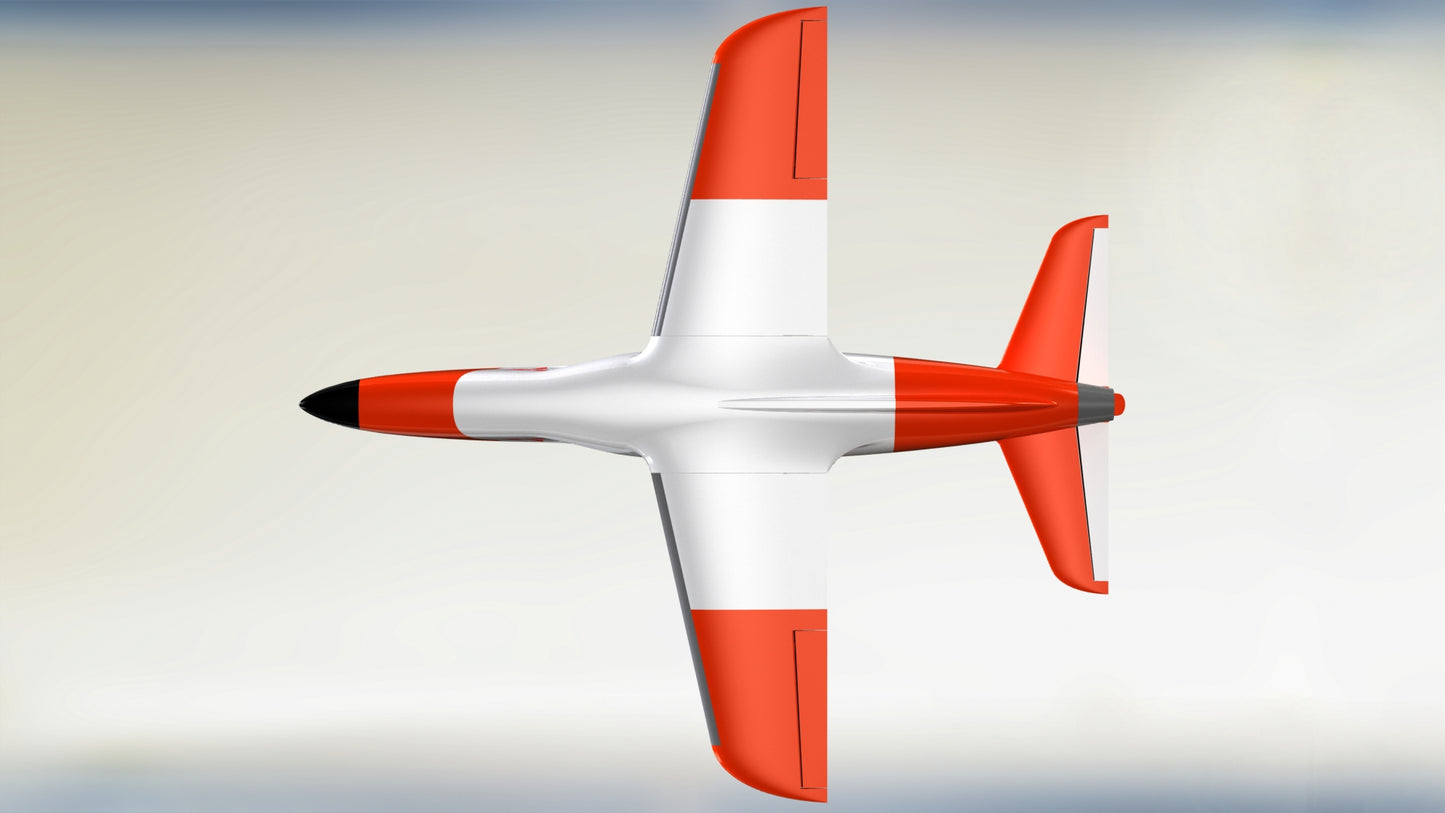

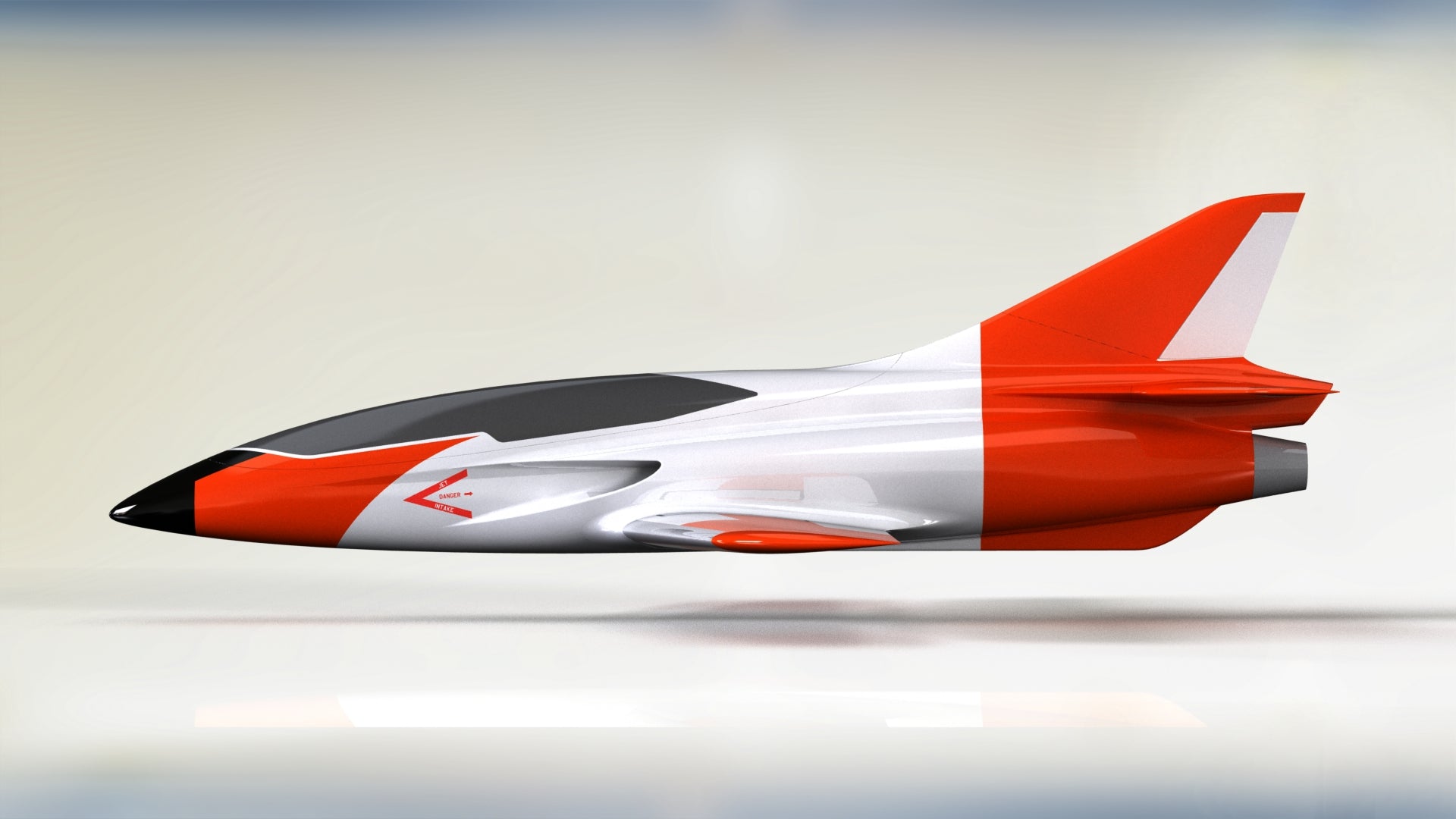

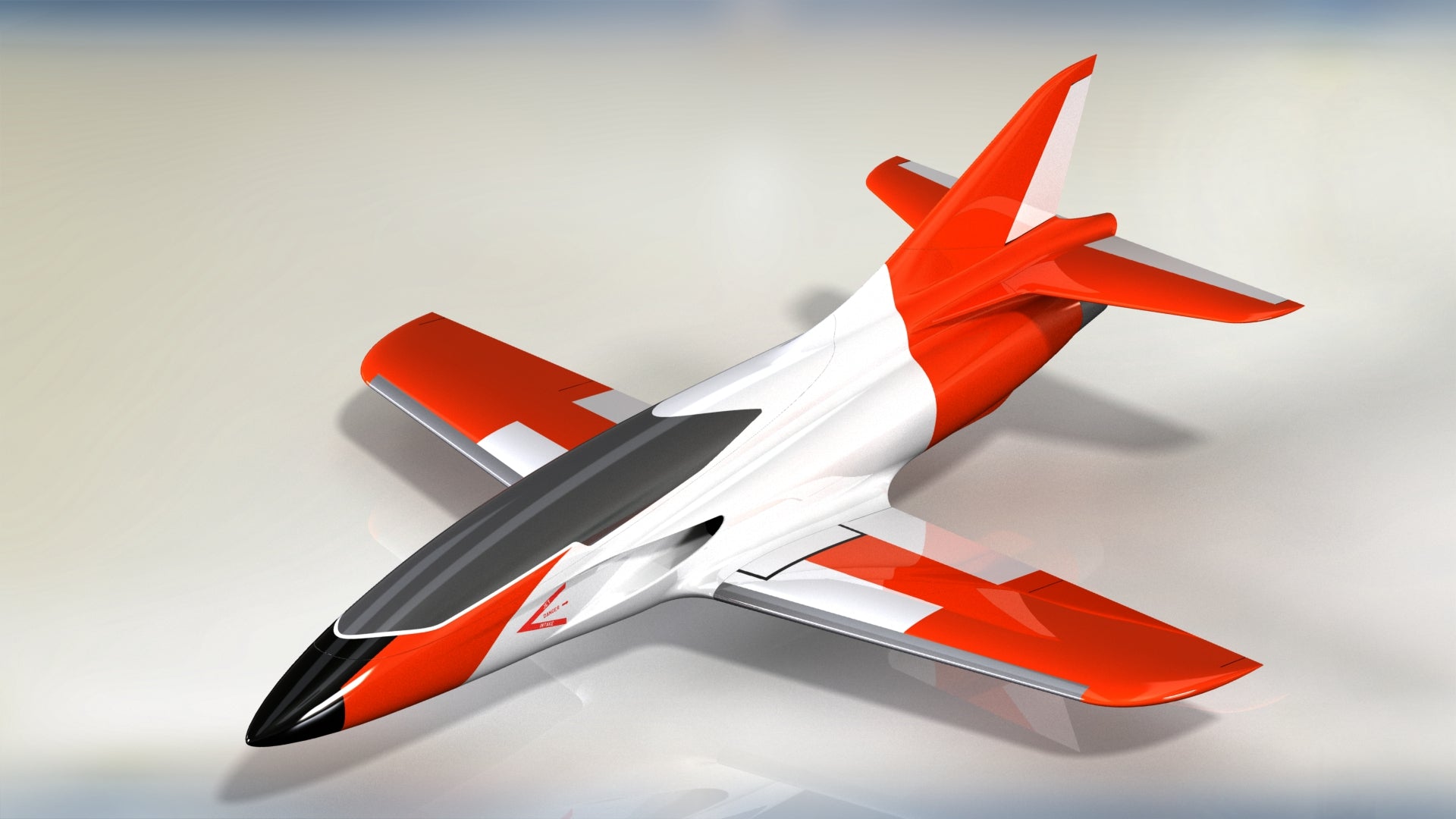

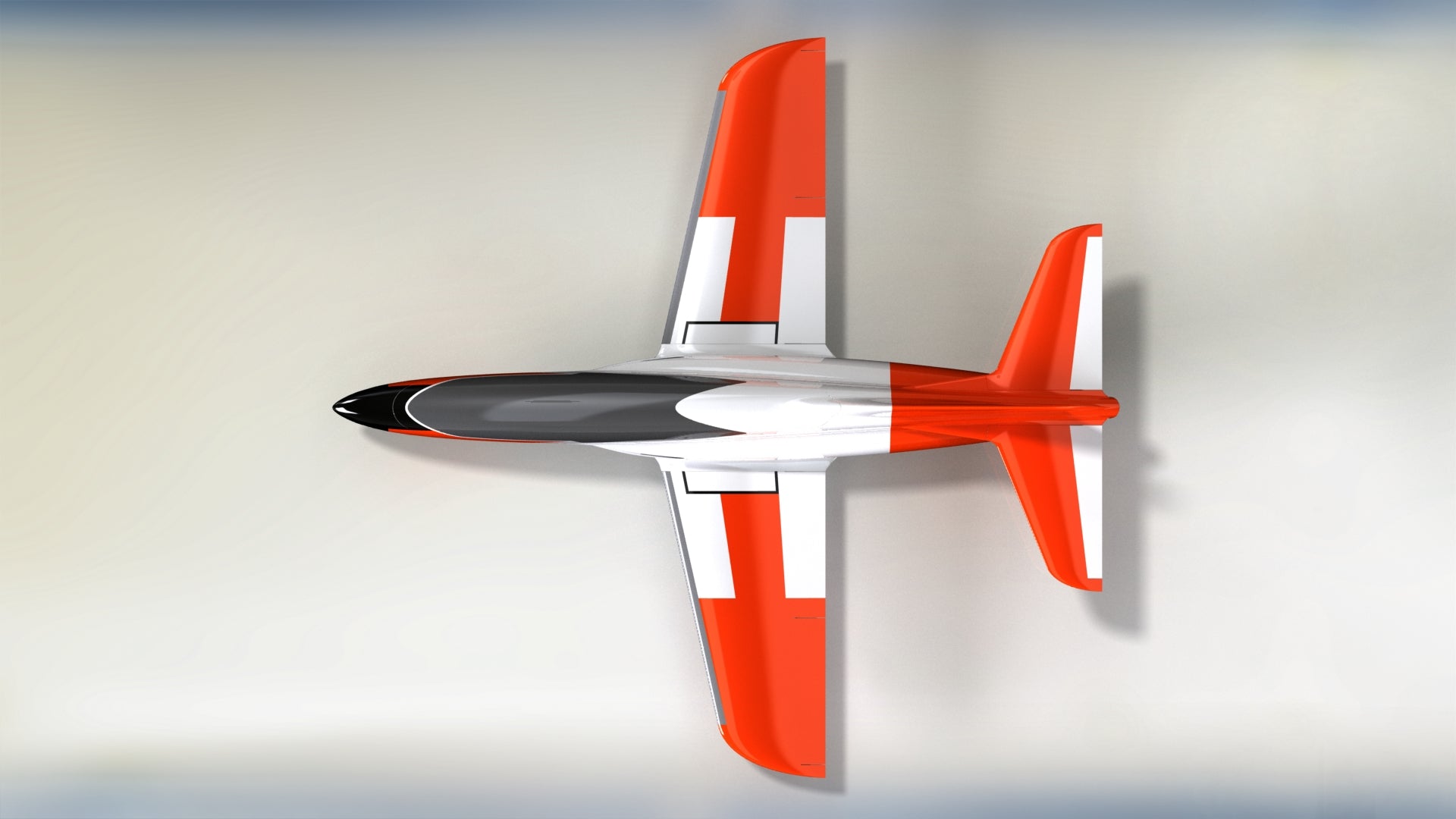

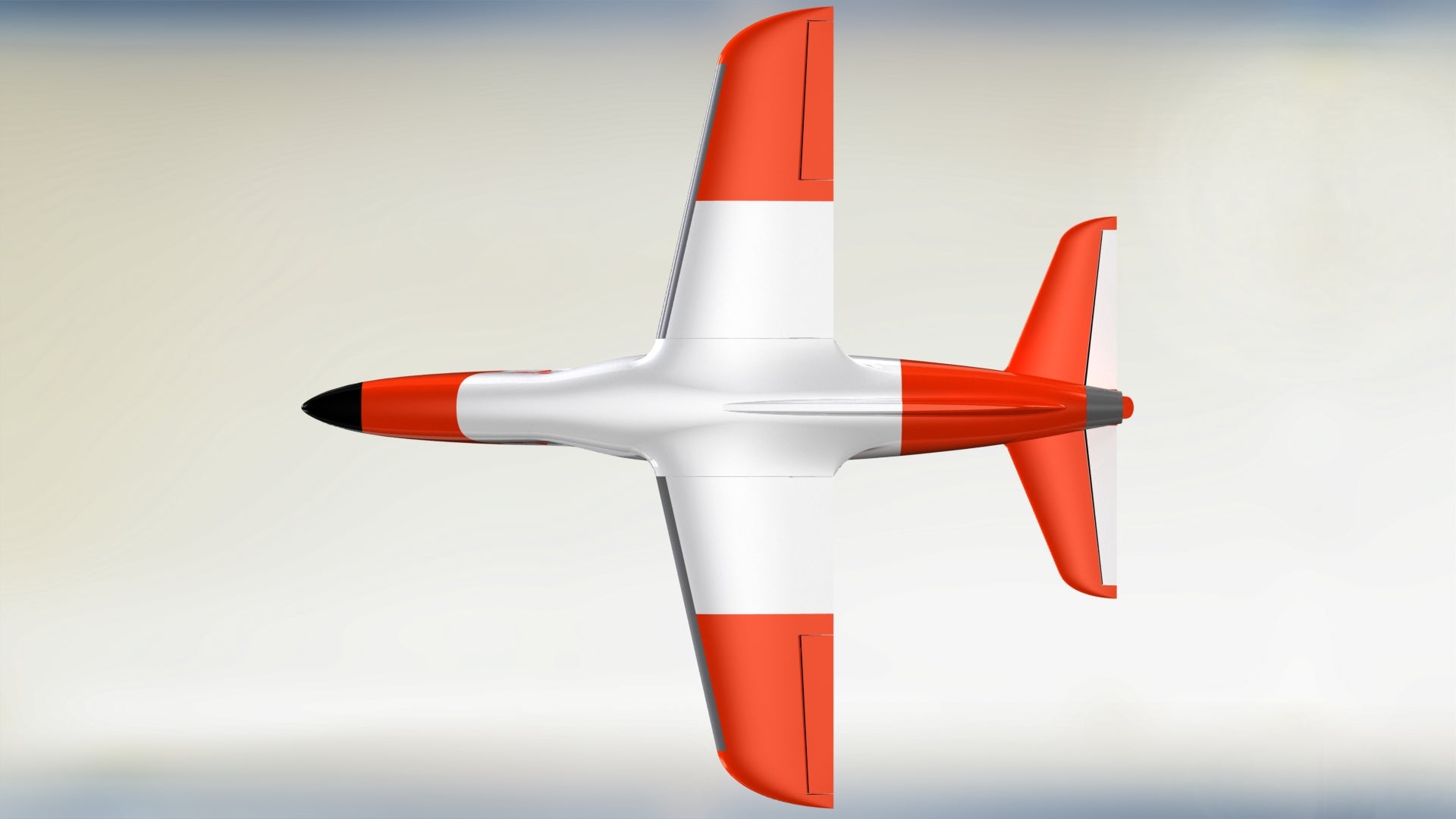

Elite Aerosports BDX/UAS version

Wingspan: 2.65m / 104 Inches

Length: 2.8m / 110 Inches

Weight: 40-42 Lbs

Power: 180N-250N

Weight: up to 125lbs

Retractable Electronic Landing Gear suitable for 125lbs max weight.  Gyroscopic braking assist

Fuel capacity 6.5L -8.5L /Diesel, JetA, Kerosene

Payload 10lbs +

Max speed 200 knots +

15G maneuverability

Max Endurance 15 min at cruise

Takeoff Roll <500ft/ Landing Roll <500ft

Made of the latest composite sandwich technology

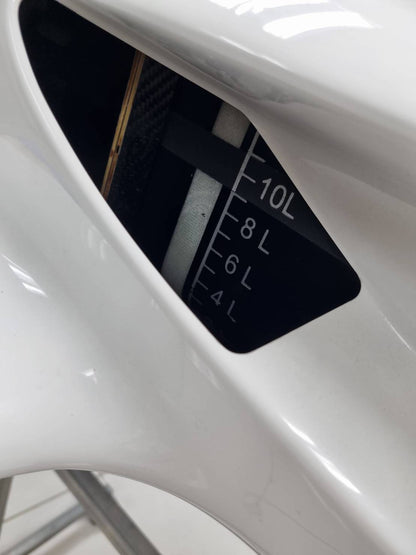

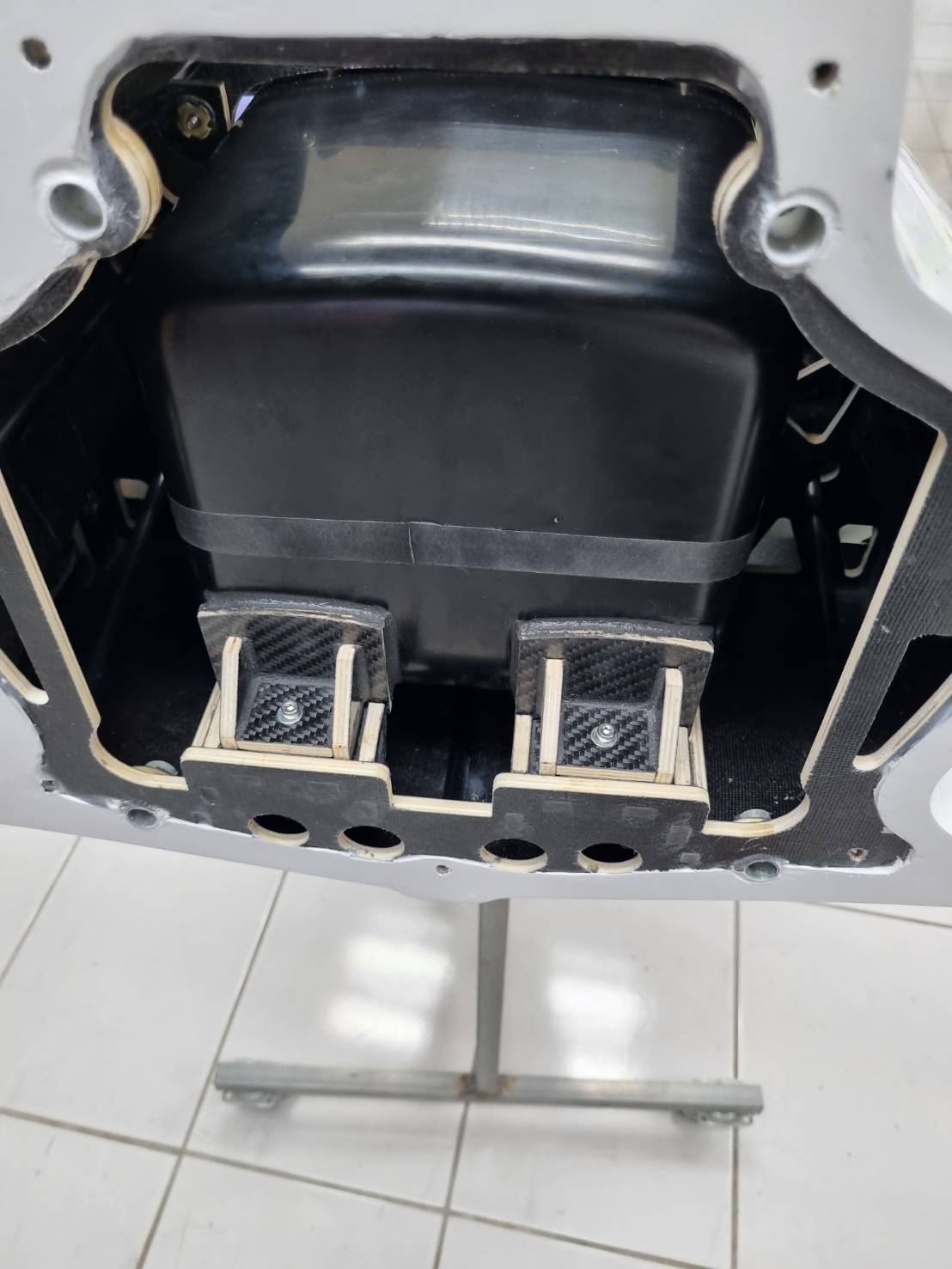

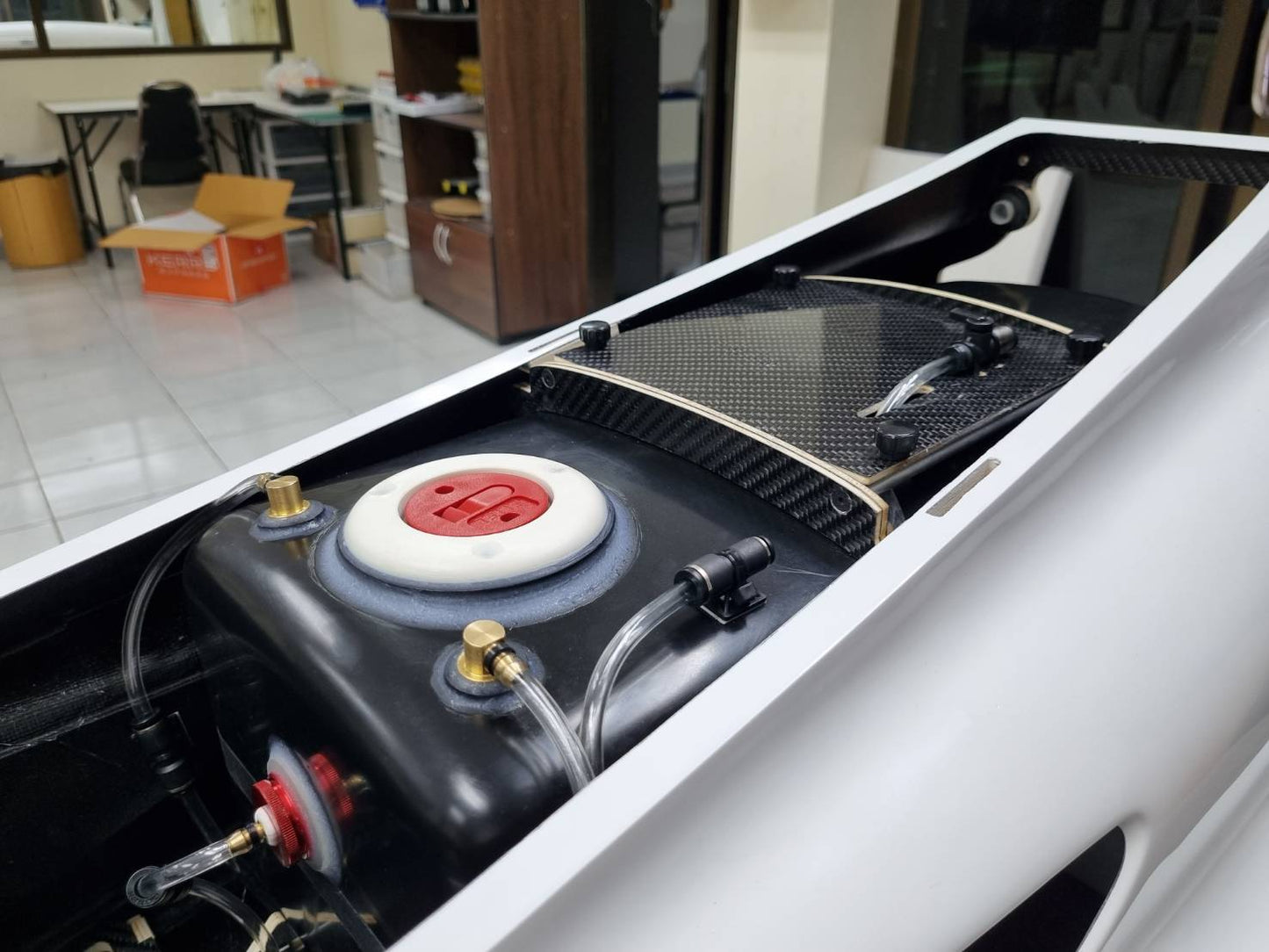

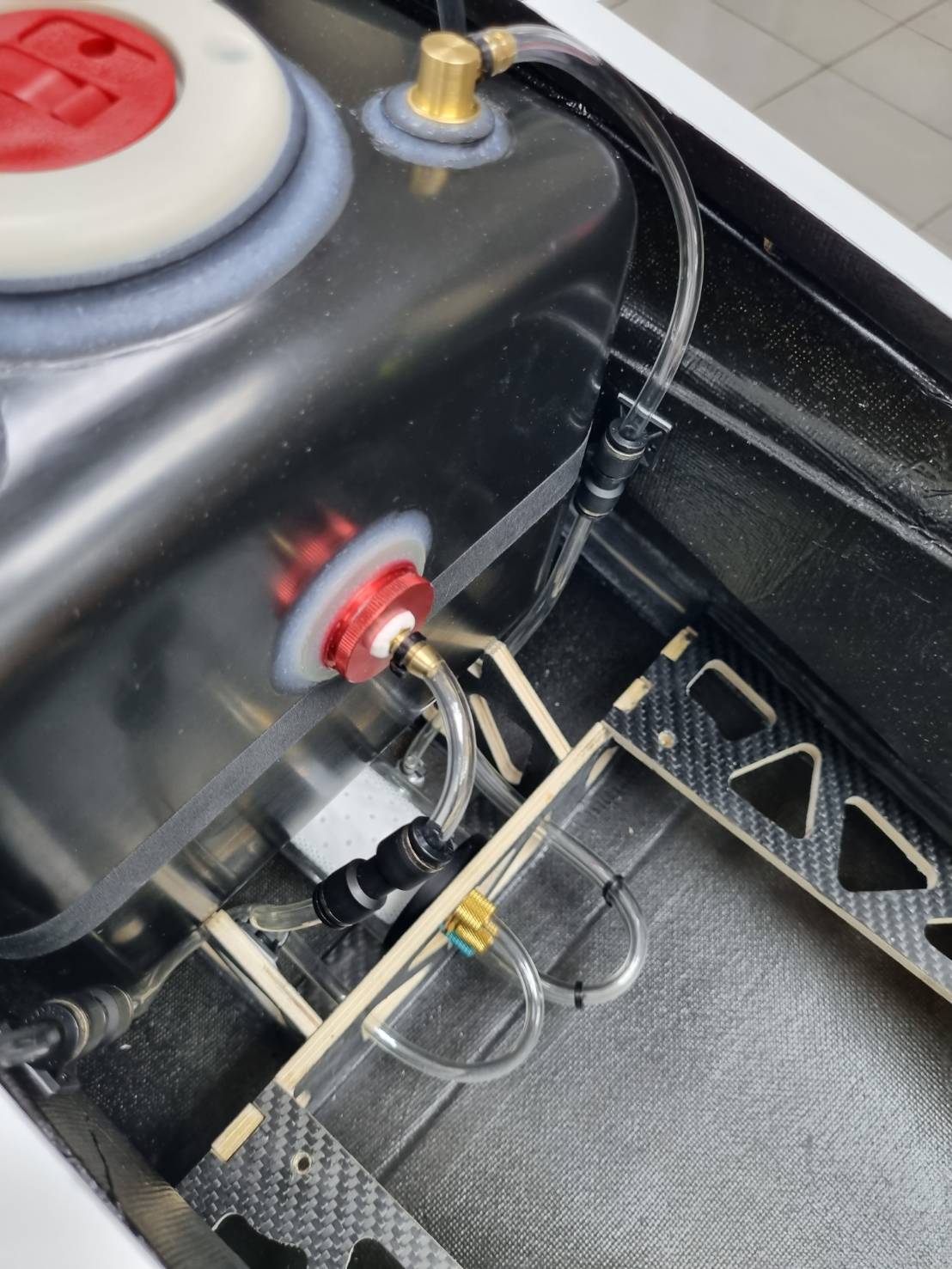

Fuel cell 6.5L.   Reinforced wing structure

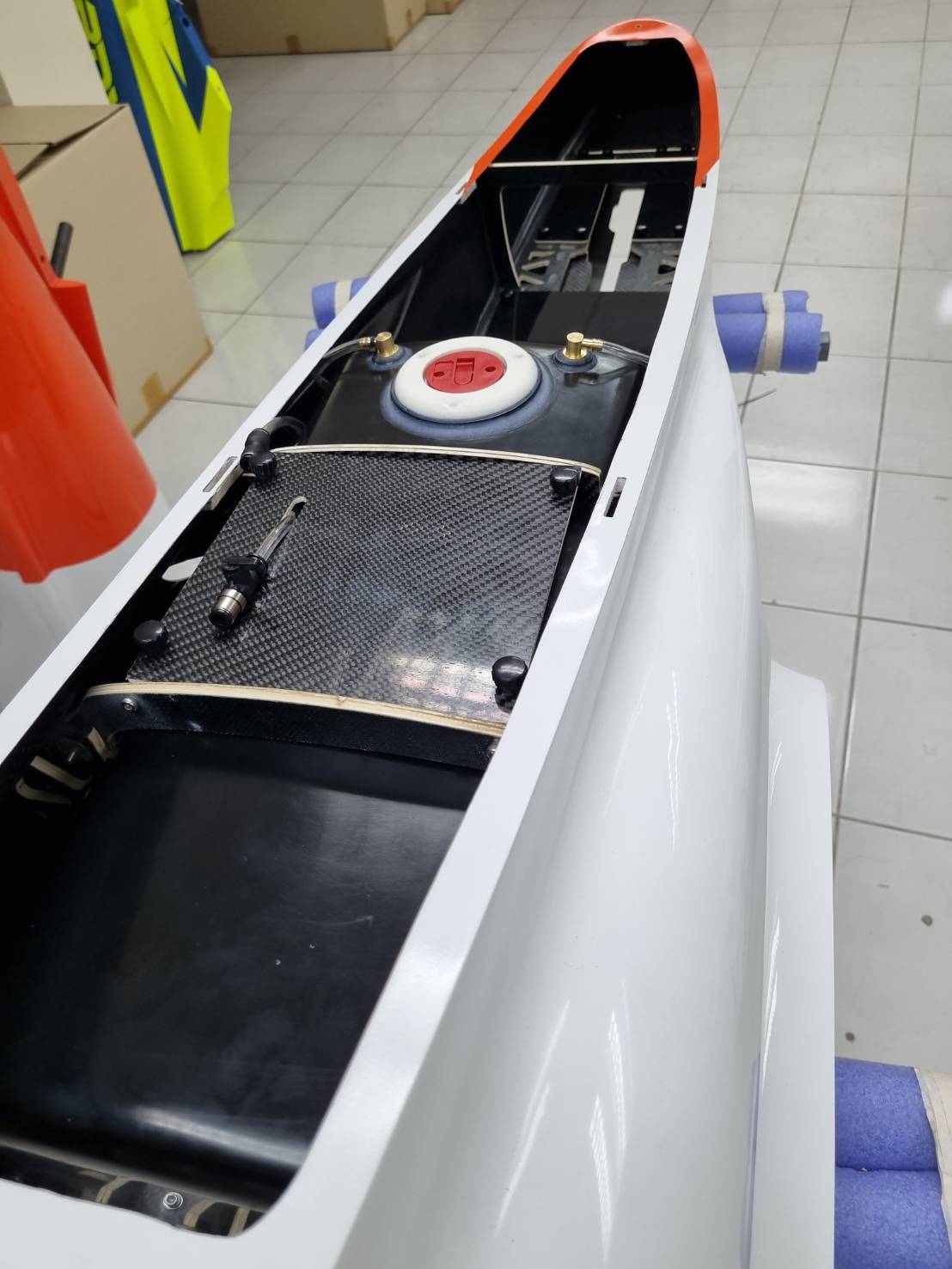

Generous payload area for any instrumentation/equipment layout

Painted outside mold finish with clear coat and customizable paint scheme

Center hinge rudder for precise centering and maximum throw

2 piece fuselage, detachable wings, stabs and fin.  Compact and comes apart quickly and easily for transport

Removable fin and stabs with one bolt.  Removable ventral fins

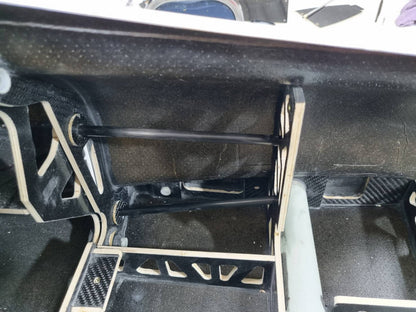

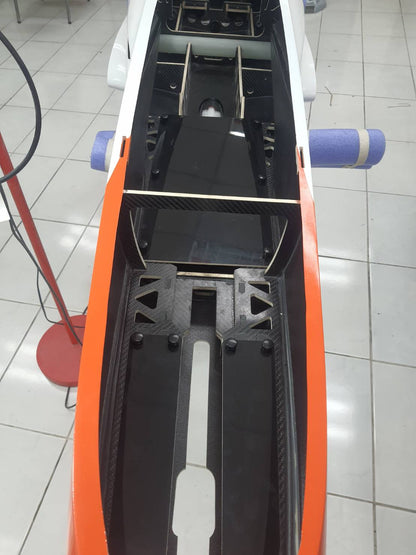

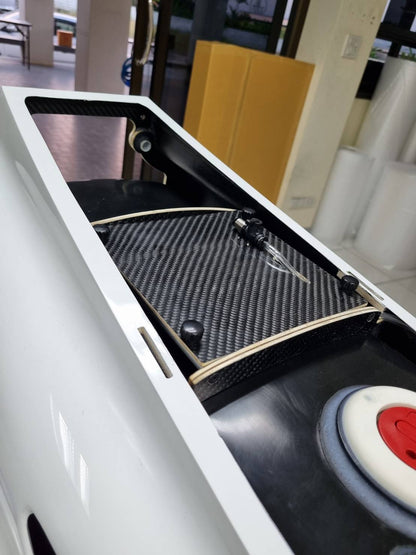

All carbon fiber laminated formers and equipment tray

Carbon fiber wing tube and spar tubes

Protective Fuse, wing, fin and stab covers included

Reinforced landing gear structure and wings suitable for 125lbs

Full CAD drawings are available for UAS version at additional cost

Pilot available



2021 BDX/UAS Price list



BDX UAS version which includes electronic retractable landing gear, standard pipe, fuel tank

$25,999.  Includes priority production

Landing gear(included)

6.5L fuel cell plus 2L additional fuel cell(included)

Standard pipe(included)

Hardware included



OPTIONAL ACCESSORIES

High flow Fuel fittings $150

3/16 high flow Fuel Line $30

8 HV High torque servos $1600

Fuel system UAT $200

Flight System Gyro $299

K210 $3150

 8 servo arms $75

Wire harness $299

Fuel system vent $20

Festo shut off valve $45

Hysol and nozzles $100

Custom wing, stabs and fin covers $350

Fuse bags $350

Pixhawk 2.1 Standard $499

Here2 GNSS $199

Blue cube,  ADSB carrier with GPS $1175

HEX Technology Cube Orange Full Bundle with Here3 GNSS, RFD900X $899

Powerbox Royal SRS redundant power management system with integrated gyro, telemetry and redundancy RX $799

4 HRB 2s 5000mah 7.4V

1 6000 mah 9.9v

Powerbox Core Transmitter $2495

Build Havoc UAS RTF turn key $4000

Full CAD drawings $7000

Pilot available for hire.

BDX Pixhawk READY $36000

UAS  BDX Pixhawk READY comes built, ready to fly.



**********WE CAN BUILD YOUR UAS TURN KEY***********

We will fully build your UAS and install all equipment.  Model would require final setup by end user.
